7/8"-16UN Automation 3 Pin Male Connector Pre Assembled Cable Waterproof

7/8"-16UN Connector Automation Pre-assembled Cable 3Pin Male Straight Waterproof

Product Description

In industrial automation control systems, 7/8" connectors enable stable transmission of signals. For example, in the connection between sensors and controllers, it ensures that precise measurement data can be transmitted accurately, allowing The control system can make timely and accurate decisions. For example, the pressure data collected by the pressure sensor is transmitted to the controller through the 7/8" connector, and the controller adjusts the operating parameters of the production equipment based on these data.In industrial automation control systems, 7/8" connectors enable stable transmission of signals. For example, in the connection between sensors and controllers, it ensures that precise measurement data can be transmitted accurately, allowing The control system can make timely and accurate decisions. For example, the pressure data collected by the pressure sensor is transmitted to the controller through the 7/8" connector, and the controller adjusts the operating parameters of the production equipment based on these data.

Technical Data

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = GN/YE 2 = BN 3 = BU	A	8A	600V	3×0.15 (3×16AWG) PVC, black	Straight	2M	M7803M-2/P00R
							5M	M7803M-5/P00R
							10M	M7803M-10/P00R

*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)

7/8"-16UN 3 Pin Male Connector

3 Pin Male Connector Waterproof

7/8"-16UN Automation Connector

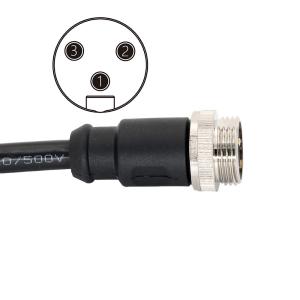

7/8"-16UN Automation 3 Pin Male Connector Pre Assembled Cable Waterproof Images
